RWC 010-1S & 2S


RWC010-1S

RWC010-2S
  • Description
  • DATA SHEET
  • Operation
  • MACHINE-DIAGRAM

RWC 010

The RWC 010 is suitable for small coils and thin wires, which are wound without tailstock.
The machine can be supplied as One- or two-spindle version.

Quality and flexibility = best customer benefits.
• Easy programming.
• External programming possible with Excel and WiDaMa (Winding-Machine Data Management).
• Central program management on file servers.
• All winding parameters are programmable and extensible.
• Programmable winding operations.
• An operating step includes all needed winding parameters.
• Corrections of programmed functions during winding process.


Speed and torque of the machine can be modified very easily by changing belt and gear wheels.
Loading of winding programs takes place via USB and LAN interface.
Integrated Flash Memory serves also as a winding program and parameter data medium.
Winding programs and parameters can be created directly at the machine and edited, protected by the various password levels.
Winding programs can be edited on external Computer with Excel and transferred to the machine via USB or LAN Interface.
RWC machines have by default a 15-inch touch screen with user interface, simple and easily understandable.
RWC machines have a powerful control / real- time operating system, which is modularly extensible.

Quality - Made in Germany

Technical data
Machine Types RWC 010-1S * RWC 010-2S *
Wire range mm 0,01 - 1.20 0.01 - 1.20
Winding width mm 100 mm * 100 mm *
Clamping length with Tailstock mm 100 mm * 100 mm *
max. Pitch- Traverse mm 99.99 /Spindle-Turn ³ 99.99 /Spindle-Turn ³
Belt level 5 0   -   4 0   -   4
Belt level  0 -  rotation speed rpm max 750 / 1.000 ** max 750 / 1.000 **
Belt level  0 -  Torque Nm max 7,6 / 5,72 max 7,6 / 5,72
Belt level  1 -  rotation speed rpm max 1.500 / 2.000 ** max 1.500 / 2.000 **
Belt level  1 -  Torque Nm max 3,8 / 2,86 max 3,8 / 2,86
Belt level  2 -  rotation speed rpm max 3.000 / 4.000 ** max 3.000 / 4.000 **
Belt level  2 -  Torque Nm max  1,9 / 1,43 max  1,9 / 1,43
Belt level  3 -  rotation speed rpm max 6.000 / 8.000 ** max 6.000 / 8.000 **
Belt level  3 -  Torque Nm max 0,95 / 0,715 max 0,95 / 0,715
Belt level  4 -  rotation speed rpm max.12.000 / 16.000 ** max.12.000 / 16.000 **
Belt level  4 -  Torque Nm max 0,475 / 0,357 max 0,475 / 0,357
Spindle-/Tailstock Center height mm 190  * 120 / 190 *
Winding diameter mm 120  * 2 x 75  *
PC-Control Industrial-PC with Single-Core-Processor,  Dual-Core-Processor **
Languages DE, EN, IT, FR, ES, CS, HU, SU, RU, PL, NL
Connections 2x USB2.0, 1x Ethernet (RJ45) 100M, 2x Serial (RS232), 1x VGA, 1x Foot Control Device, Digital I/O, 2x PS2
OS Robust real-time operating system
Data-Backup / Update via USB and Ethernet
Printer connection (Optionally) USB/Parallel **
Digital-Analog I/O (Optionally) expandable ***
Display 15" Touch-Screen (metal case) Standard *, 12.1'' IP65 Touch-Monitor **, 15'' IP65 Touch-Monitor **
Keyboard USB Wireless Keyboard 2,4 GHz **
Disk Flash Memory, Local  ca. 5.000 winding programs ², Network ca.20.000 winding programs ***
Extensions Programmable PLC interface to control external components possible (integrated) **
Joystick Teachfunction / Spindle to CW/CCW and Traverse (left and right) operated manually
Connection values kVA 1,05 1,05
Machine dimensions W x L x H 570  x  650  x  660 570  x  650  x  660
Power Supply 230V - 50 / 60 Hz / 16 A
Weight ca. 55 kg ca. 57 kg

* Other dimensions possible, subject to change!

 ** Optionally, on request

 *** Expandable on request

   ² In average size of 400 kilobytes (about 500 steps) Incl. comments

³ The following applies Product of speed Main spindle x Feed motion <3600 / min

Versatile Touch Software for Winding Machine

The user interface is a simple touch screen operation optimized for winding machines and provides basic functionalities such as winding programs
Open/Close/Copy/Save/Delete /Edit/Print, also language-switch and additional functionalities from the area, configuration, service and system optimization available.


Main winding parameters

Main winding parameters


Machine-Settings

IO-Config-Forcing


Error Messages

Error correction


Language switching

SYSTEM-UPDATE
.
Do you want to have more pictures of user interface, then contact us:
CONTACT US

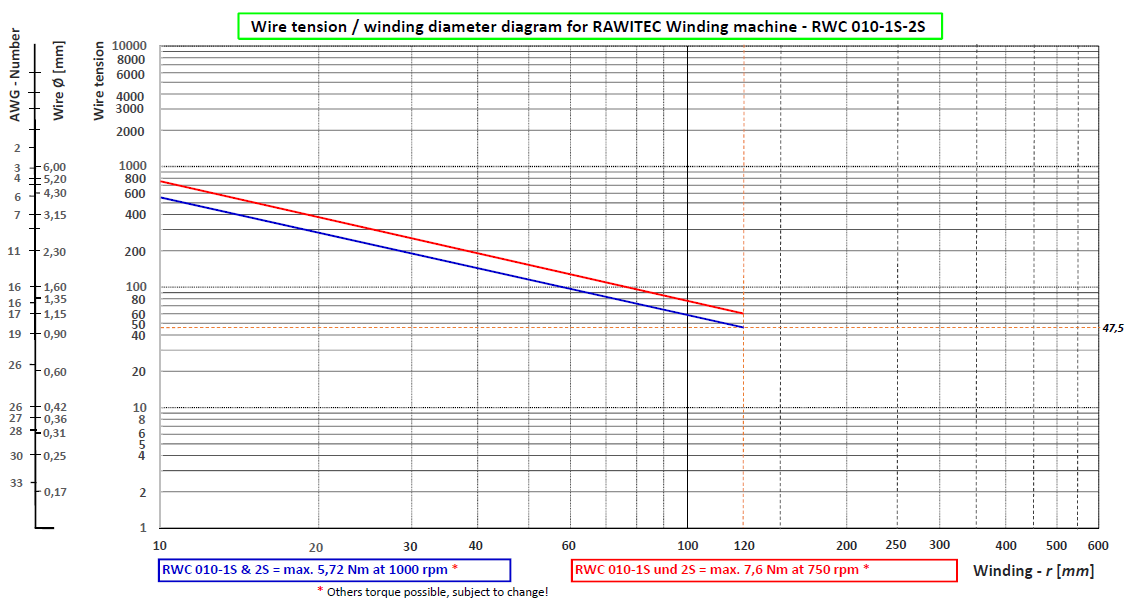

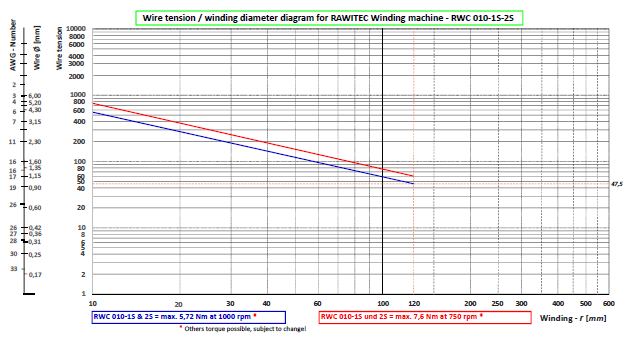

RWC 010 - Machine Diagram
